ProtoSleepNet#

Prototype-based, interpretable sleep staging — where reading the prototypes is reading the decision.

Code for “Prototype-based interpretable sleep staging with physiologically meaningful sub-stage pattern discovery” (ProtoSleepNet), under review at npj Digital Medicine. The revised manuscript (v2) is on the project website; version 1 is on Research Square, 10.21203/rs.3.rs-9169987/v1, under an earlier title.

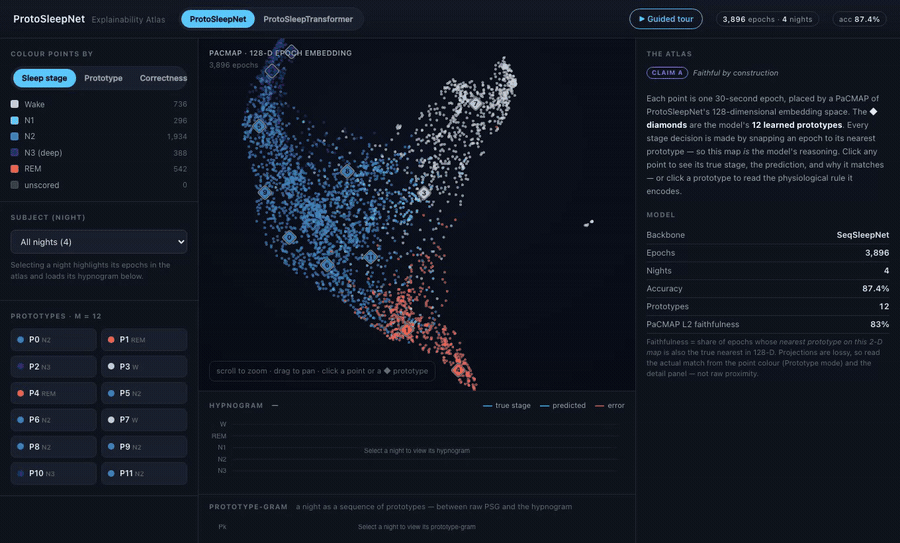

▶ Try it live — protosleepnet-demo.pages.dev — an interactive atlas of the prototype space: click any epoch to see the exact evidence for its stage.

ProtoSleepNet wraps a sleep-staging backbone (SeqSleepNet or SleepTransformer) with a Prototype Sub-Stage (PSS) module: per-channel encoding, modality embeddings, inverse-accuracy channel dropout, a Transformer channel mixer and a dual-residual path, yielding contextualized epoch embeddings that are quantized into a small, interpretable prototype codebook. The prototypes carry physiologically meaningful, AASM-coherent sub-stage patterns and support exploratory clinical probing (Alzheimer’s, Parkinson’s).

📖 Documentation: guidogagl.github.io/protosleepnet — method overview, a guide to how to interpret the model, the embedded live demo, and the full paper-reproduction recipe.

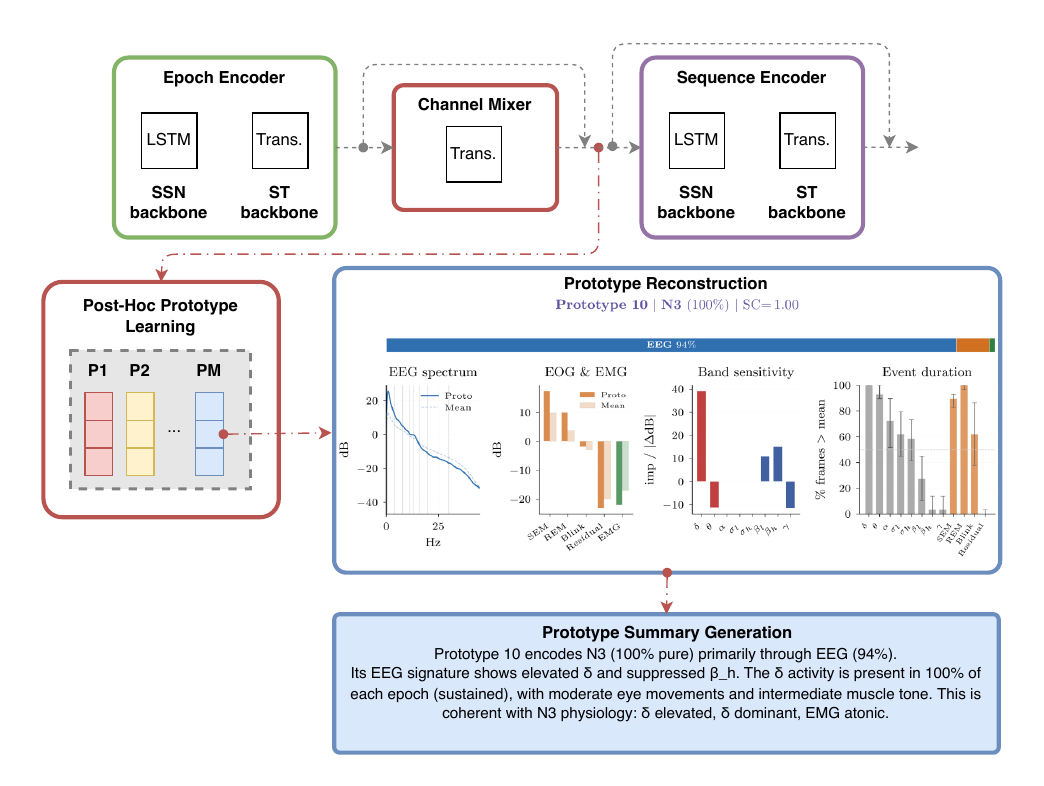

ProtoSleepNet architecture

Built on physioex v2.0.0.

The model architecture, data loaders, preprocessing, dataset splits, seeds and evaluation metrics all live in physioex. This repository holds only the experiment pipeline that produced every figure and table in the paper.

Installation#

conda env create -f environment.yml && conda activate protosleepnet   # optional
pip install -e .                     # installs the `protosleepnet` package + physioex==2.0.0

Requires Python ≥ 3.10. After pip install -e . every script runs as a module from the repo root — one convention throughout:

python -m protosleepnet.train --help
python -m protosleepnet.figure_reconstruction.spectral_signature --help

Pretrained weights#

Weights are on the HuggingFace Hub and load through physioex. Names follow the physioex convention <model>-<primary-author>. The paper’s models live in 4rooms/sleep-prototypes (the Phan originals {seqsleepnet,sleeptransformer}-phan are in 4rooms/physioex):

from physioex.models import load_from_pretrained
# PST — SleepTransformer backbone (SHHS, L=21)
model = load_from_pretrained("protosleeptransformer-gagliardi", repo_id="4rooms/sleep-prototypes")
# PSN — SeqSleepNet backbone (MASS, L=20)
# load_from_pretrained("protosleepnet-gagliardi", repo_id="4rooms/sleep-prototypes")
# input  (batch, L, 3, 29, 129) STFT log-power (EEG/EOG/EMG); output (batch, L, 5) AASM logits

The 3-channel baselines and ablation variants are published alongside them: {seqsleepnet,sleeptransformer}-gagliardi[-dropout|-mixer].

bash reproduce.sh runs a smoke path (load weights → forward pass → regenerate one figure).

Data#

11 PSG datasets / 20 dataset-sources (12,317 subjects). Raw recordings are not redistributed here — obtain them from the sources below and preprocess them with physioex (this repo depends on physioex’s preprocessing; it ships none of its own). See the physioex docs and the launchers in examples/slurm/.

Datasets	Access
SHHS, MrOS, MESA, WSC, HomePAP	NSRR — controlled/registered (https://sleepdata.org)
HMC, Sleep-EDF	PhysioNet — open
MASS, DCSM	open on request
ASD (Alzheimer), KPD (Parkinson)	KU Leuven — restricted (contact authors; ethics S61792/S70708)

Configuration (environment variables)#

Scripts read paths from the environment so no absolute paths are baked in:

Variable	Meaning	Default
`PROTOSLEEPNET_DATA` / `EXPERIMENT_DIR`	root for predictions, embeddings, reconstruction outputs	`data`
`PROTOSLEEPNET_MODELS`	checkpoints / training stats	`<DATA>/models`
`PROTO_RECON_SRC`	reconstruction source arrays (optional; else symlink `reconstructions_bulk/`)	—
`PHYSIOEX_ROOT`	physioex checkout (only if running physioex from source, not pip)	—

Cluster launchers additionally source examples/slurm/env.sh (copy from examples/slurm/env.sh.example).

Repository layout#

src/protosleepnet/            # installable package (run as python -m protosleepnet.<mod>)
  train.py  test_*.py  extract_*.py  seed_*.py   # staging training/eval + seed-stability
  build_protosleepnet.py                          # shared model factory
  ablation/  baselines/                           # ablation & residual/mixer/dropout variants
  posthoc_prototypes/  proto_reconstruction/      # VQ codebook learning + reconstruction
  figure_reconstruction/                          # prototype cards / rules / spectral & relevance signatures
  probing/  clinical_probing/                      # clinical probing (AD/PD) compute + analysis
  ood_disease/                                     # OOD disease evaluation / transport
  plot/                                            # portable figure scripts (from predictions)
examples/slurm/    # cluster launchers (Leonardo/Sofia); copy env.sh.example -> env.sh
notebooks/         # global_explain.ipynb, local_explain.ipynb
data/              # small committed figure-source JSON only (see below)
tests/             # smoke tests (import graph + optional pretrained forward pass)

Large artifacts (predictions, embeddings, reconstruction arrays, checkpoints) are not in git — they live in a backup root and are wired in via the git-ignored json/ and reconstructions_bulk/ symlinks. Only small figure-source JSON is committed under data/.

Reproducing the paper (Figure/Table → experiment → command)#

Each command below is the entry point; pass --help for its options. Full experiment settings (M value, seeds, datasets) are documented per-script.

Paper asset	Experiment	Command
Fig 2a; Supp §1	In-domain + OOD staging, per-class, confusion, stats	`python -m protosleepnet.train`; `python -m protosleepnet.test_pretrained`
Fig 2b; Supp §3,§8	M-sweep, residual/VQ robustness, VQ methods, randomization	`python -m protosleepnet.posthoc_prototypes.learn_prototypes_vq`; `python -m protosleepnet.plot.residual`; `python -m protosleepnet.plot.vq`
Supp §2	Ablation (4 component variants) + occlusion robustness	`python -m protosleepnet.ablation.train_ablation --variant {baseline,dropout,mixer,protosleepnet}` (SleepTransformer) / `...train_ablation_seqsleepnet ...` (SeqSleepNet); `python -m protosleepnet.plot.occlusion`
Fig 4; Supp §5,§6	Prototype reconstruction (data/model/hybrid) + cross-dataset	`python -m protosleepnet.proto_reconstruction.data_driven` (`.model_driven`, `.hybrid`); `python -m protosleepnet.figure_reconstruction.compute_cross_dataset_metrics`
Fig 3; Tab 1,2; Supp §4,§6	Codebook summaries, band-ablation rules, coherence, local IG	`python -m protosleepnet.figure_reconstruction.{rule_learning,spectral_signature,relevance_signature,compute_local_explanations,combinatorial_ablation}`
Supp §9	Seed stability	`python -m protosleepnet.seed_stability_pipeline`
Fig 5; Supp §7	Clinical probing (AD/PD), frozen-model LOSO	`python -m protosleepnet.clinical_probing.staging.extract_embeddings`; `python -m protosleepnet.probing.{parkinsons,alzheimers}.diagnosis_probe`; `python -m protosleepnet.clinical_probing.{parkinsons,alzheimers}.analyze_features`

Manuscript figure/table assembly (LaTeX-coupled emitters) is kept out of this repo, with the paper sources.

Tests#

pip install -e . pytest
pytest                 # import-graph smoke test (no network)
pytest --runslow       # also pull weights from HuggingFace and run a forward pass

Citation#

If you use this code, please cite the paper and the software — see CITATION.cff (paper + software Zenodo DOI). This work builds on physioex v2.0.0. License: MIT (LICENSE).
